Product information:

Product Category: Walkie Talkie

Frequency range: 400-480MHz

Number of channels: 16

Channel spacing: 25KHz (wide band)/12.5KHz (narrow band)

Working voltage: 7.4V DC

Battery capacity: 1500mAh

Antenna impedance: 50Ω

Frequency stability: ±2.5ppm

Working mode: same frequency simplex or different frequency simplex

Size: 110*52*33mm

Weight: 470g

Transmitter:

Output power: ≤5W

Modulation mode: 16KΦF3E/11KΦF3E

Maximum frequency deviation: ≤5KHz (wide band)/≤2.5KHz (narrow band)

Spurious radiation: ≤-36dBm (﹤1GHz); ≤-30dBm (﹥1GHz)

FM noise: ≤-40dB (wide band)/≤-45dB (narrow band)

Audio distortion: ≤5%

Receiver:

Sensitivity: ≤0.25μV (wide band)/≤0.35μV (narrow band)

Intermodulation: ≥65dB

Spurious response: ≥65dB

Audio power: ≥1W

Audio distortion: ≤5%

FM noise: ≤-40dB (wide band)/≤-45dB (narrow band)

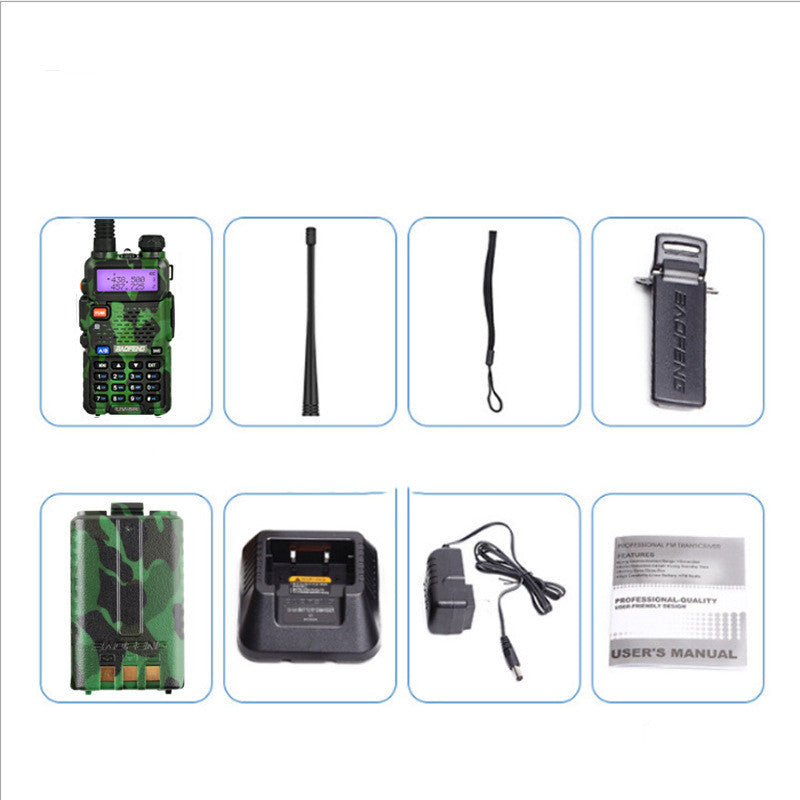

Packing list:

Walkie-talkie*1

Battery*1

Antenna*1

Belt clip*1

Charger*1

Manual*1
